Standing Seam Metal Roof

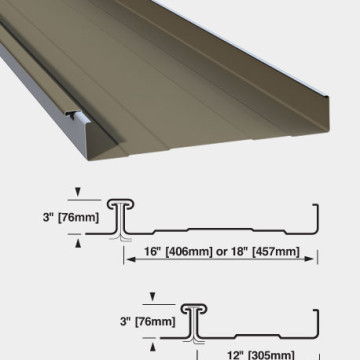

SRS 3-Centria Seam Roof System
- Substrates:
- G90 Galvanized base material, optional Galvalume®*
- Gages:
- 20 [.91mm], 22 [.76mm], and 24 [.60mm] gages available
- Optional 18 [1.19mm] gage available with 20 [.91mm] gage battens
- Panel Width:
- 12” [305mm], 16″ [406mm] and 18″ [457mm] panel widths available. Field-formed continuous lengths up to 220’ [67.1m]
- Panel Length:
- Factory formed panel lengths to 45′-0 [13.7m]
- Panel Height:
- 3″ [51mm] nominal seam height
- Slope:
- Minimum slope 1/2:12 [13mm:305mm] without endlaps, 1:12 [25mm:305mm] with endlaps
- Other Details:
- Standard planked pan
- One-piece or two-piece attachment clips
- Separate continuous batten
- Mechanically seamed
- UL 580 Class 90 Wind Uplift Rating; Tested in accordance with procedures established ASTM E 1592
- FM 1-90 approval over open purlins or isoboard and deck
- Dade County approval
